Network

Doorbell Cam CAT6 T568B Network Cable Using John's cable

Pin Number Wire Description Your Cable's Equivalent

Pin 1 White / Orange Stripe The solid white wire that was twisted around the Orange wire

Pin 2 Solid Orange Orange

Pin 3 White / Green Stripe The solid white wire that was twisted around the Green wire

Pin 4 Solid Blue Light Purple

Pin 5 White / Blue Stripe The solid white wire that was twisted around the Light Purple wire

Pin 6 Solid Green Green

Pin 7 White / Brown Stripe The solid white wire that was twisted around the Brown wire

Pin 8 Solid Brown Brown

Note to self: look at connectors with load bars and funnel type holes

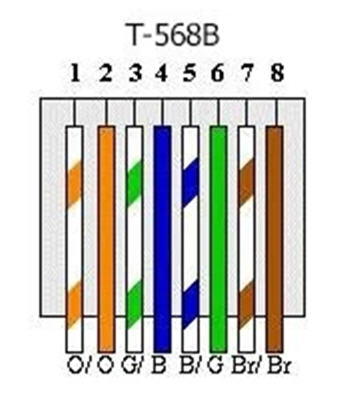

CAT6 T568B Network Cable Diagram

Network Hardware

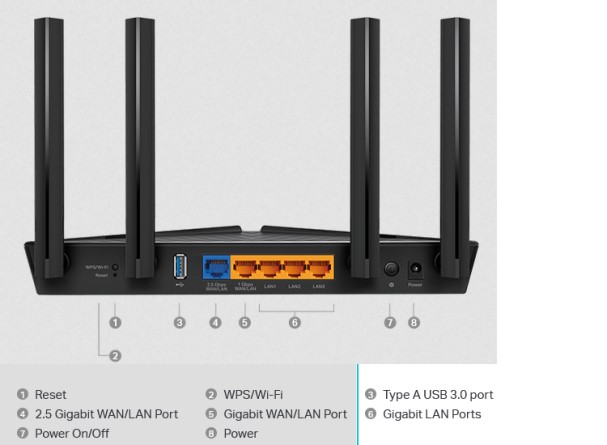

Router: tp-link A3000 Pro

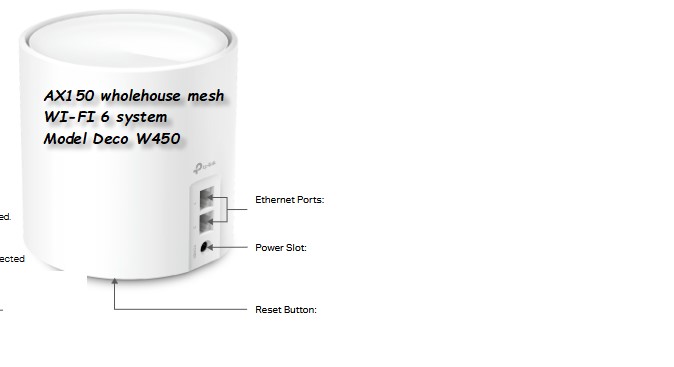

Mesh: AX1500 model DECO W4500

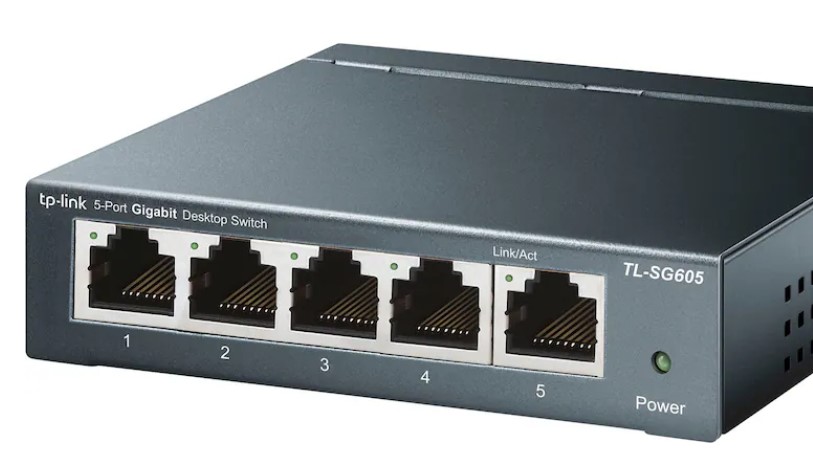

Switch: tplink model TL-SG605

Spectrum EU2251 DOCSIS 3.1

Router

Mesh

Switch

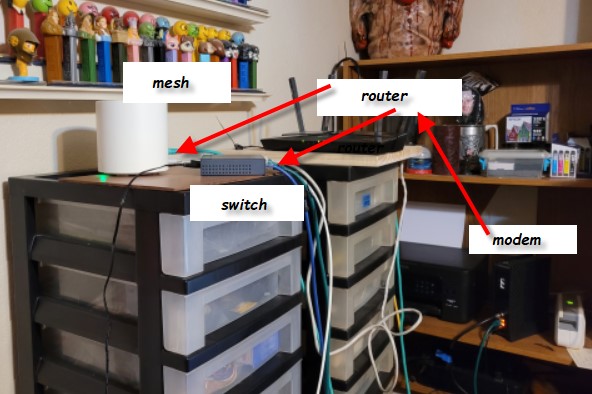

Study

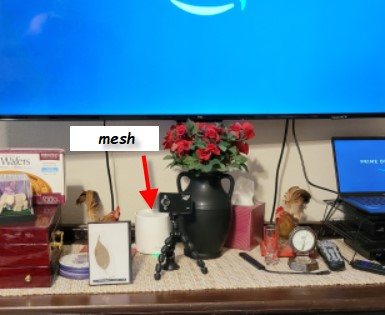

Kitchen

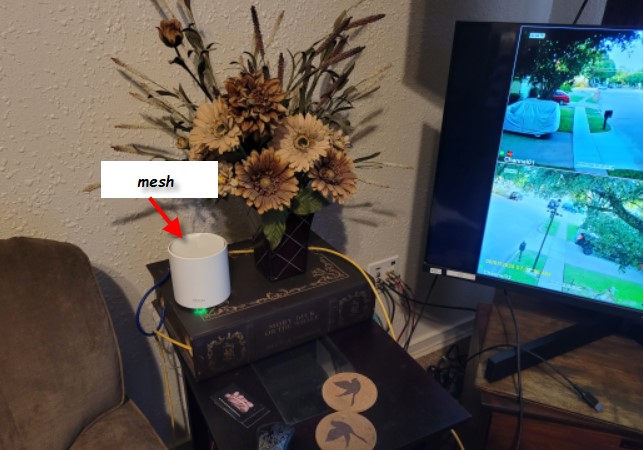

LivingRoom

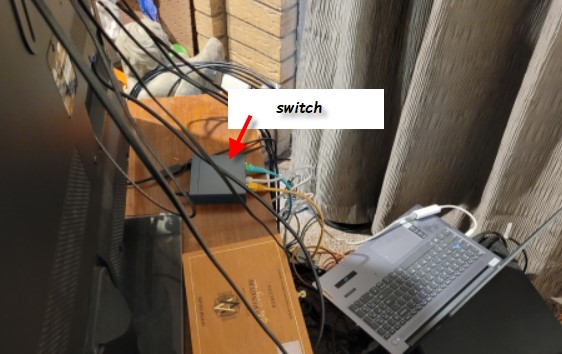

LivingRoom
